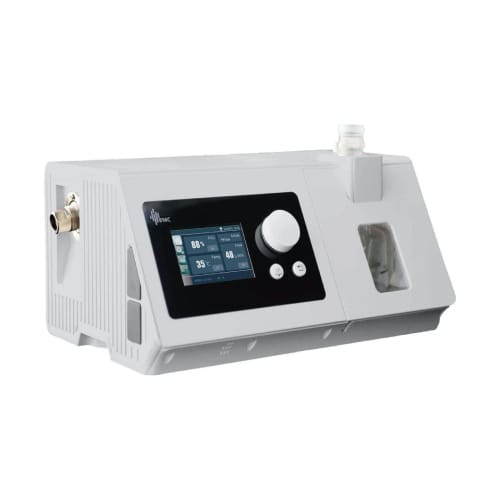

H-80A High-speed Nasal Air and Oxygen Pump

Specifications

BMC’s new H-80 series high-flow oxygen therapy unit features a highly integrated design to meet more clinical treatment needs. This high-performance humidifier delivers a maximum of 80 liters/minute of air-oxygen mixed gas.The oxygen concentration can be automatically adjusted. The purge-free design and the water chamber equipped with a backflow prevention valve to prevent gas backflow are just some of the many features. With the BMC H-80, general maintenance is significantly more convenient than other medical-grade units of similar quality.

• The H-80 series high-flow oxygen therapy can be used for patients with spontaneous breathing, including artificial airway insufficiency, and can be used for patients in hospitals and long-term care facilities.
• The new BMC H-80 high flow oxygen therapy series, highly integrated design to meet more clinical treatment requirements.
• Provides up to 80 liters/minute of oxygen and air gas along with automatic oxygen concentration adjustment.
• The non-purge model features a reverse flow water chamber that prevents backflow of gas and overall maintenance. It’s more convenient.
• Target oxygen, temperature and flow rate can be adjusted.
• Automatic monitoring of target oxygen concentration, oxygen supply system 21%-100%, exactly 1%;
• The supporter may be a wall oxygen source, an oxygen cylinder, or an oxygen generator;
• No maintenance is required for the built-in ultrasonic oxygen sensor.
• Humidification temperature in 9 stages: 29-37, specifically 1.
• The advanced dual fan design can accommodate patients of most ages at two levels of Flow & LFlow, 2L/min ~ 80L/min.
• 7-stage humidity compensation feature, which ensures adjustable humidity compensation of ±3, easily handling various harsh temperature and humidity conditions.

Hot standby feature for ease of use and oxygen saving

• The H-80 Series’ warm standby feature allows you to start warm oxygen therapy at any time without shutting down the machine soon, delivering oxygen without waiting for a warm-up cycle.

Powerful flow innovative design

• Automatically set the output flow parameters according to the patient’s peak expiratory flow (PEF), simplify the setting steps, achieve treatment effects, and improve patient comfort.

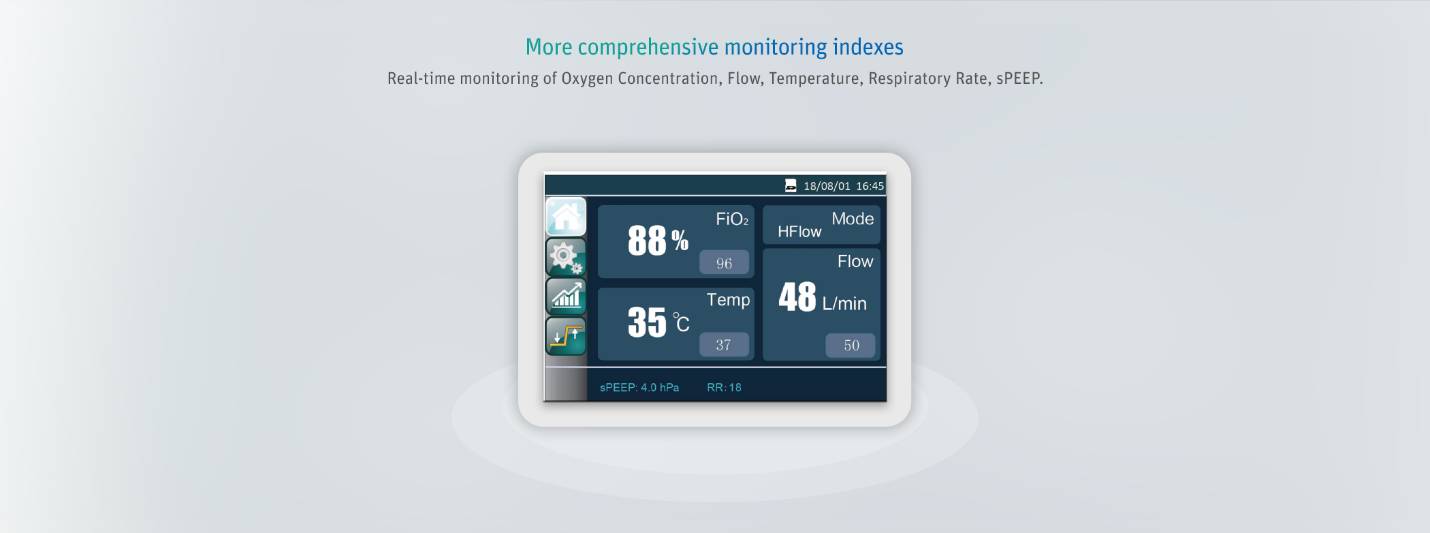

More comprehensive indexes for tracking

• Real-time oxygen concentration monitoring, flow, temperature monitoring, sPEEP monitoring.

Smart flow

• Track every patient breath, adjust patient flow between breaths, achieve high inspiratory flow and lower expiratory flow; track every breath like a two-level ventilation system, providing more comfortable and economical oxygen services. Quick download and integration for quick installation, disinfection-free configuration, saving time and clinical use.
• The H-80 series high-flow oxygen therapy can be used for patients with spontaneous breathing, including artificial airway insufficiency, and can be used for patients in hospitals and long-term care facilities.
• In high flow mode, the flow rate is 2L/min ~ 80L/min, which can automatically adjust the inhaled oxygen concentration.
• Automatic adjustment method for oxygen concentration 21%~100%
• FiO2, flow, temperature, respiratory rate, speed monitoring
• Flow rate: 2L~80L/min
• Temperature range: 29~37 9 steps adjustable
• Automatic filter replacement function
• Automatic water filling function
• One. 3 days; 7 days
• 7 Adjustable Steps to Replenish Humidity
• Screen size 3.5 inches
• Fast standby
• Automated high-flow oxygen therapy

Specifications

• Product Name: High Flow Oxygen Therapy
• BMC brand
• Model H-80A
• Adjustable flow control
• Flow rate 2L-80L/min
• Adjustable range of oxygen concentration 21%-100%
• Adjustable range of oxygen concentration 21%-100%
• 9 steps to adjust the temperature
• Screen size 3.5 inches
• Review job 1, 3, 7 days
• Adjustable range of oxygen concentration 21%-100%
• Adjustable oxygen concentration monitor
• Adjustable temperature control
• Monitorable sPEEP monitoring
• Monitor breathing rate
• Automatic filter replacement function Yes, adjustable
• Automatic water refill hints Yes
• 7-step adjustable humidity compensation
• Sleep 4 Adjustable Steps
• Quick standby yes

Standard accessories

• 1 x H-80A High Flow Humidifier 2 x R-Filter.
• 1 x Power cord.
• 1 x Water chamber exchange connector.
• 1 x Water chamber (disposable).
• 1 x Disposable LH2 Heating Tube.
• 1 x Disposable High Flow Nasal Cannula (M).
• 1 x User Manual.
• 1 x Quick Start Guide.
